L-Series Curved & Straight Cylindric Wave Radiators

L-Serie

L 16i     00730

i-Version, 80° x 7°
320 W AES
8 Ω (32 Ω/128 Ω opt.)

L 16j     00735

j-Version, 80° x 17°
as above

L 8i       00715

i-Version, 80° x 7°
160 W AES
16 Ω (4 Ω/64 Ω opt.)

L 8j       00725

j-Version, 80° x 17°
as above

L 8c      00720

c-Version, 80° x 37°
as above

L 4c      00710

c-Version, 80° x 37°
80 W AES
8 Ω (32 Ω opt.)
Downloads
Data Sheet L-Series
Architectural Specifications L 16j
3D-Files
Simulation Data
INSTALLATION_L 16_de
(prosound-03/2015)
TESTIMONIAL
L 16 j / G Sub 1201 dp+_de
(tools4music-03/2013)
Product Pictures

Ultra thin, low-profile loudspeakers for demanding applications in acoustically difficult rooms such as churches, auditoriums and foyers. The horizontal coverage and coupling of the 3” broadband drivers have been optimised with purpose built waveguides.

The L-Series is comprised of a total of six models with various  length and curving characteristics, which can be combined as desired to suit the specific application.

Applications
Specifications
  L 16i / L 16j
L 8i  /  L 8j  /  L 8c L 4c
Speaker Components 16 x 3“ wideband 8 x 3“ wideband 4 x 3“ wideband
Description Straight / Curved Straight / Curved / Curved Curved
Powerhandling    AES / Peak 320 W / 960 W 160 W / 480 W 80 W / 240 W
Impedance nominal
(32 Ω / 128 Ω optional)
16 Ω
(4 Ω / 64 Ω optional)
8 Ω
(32 Ω optional)
SPL 1 W / Peak @ 1 m 96 dB / 124 dB (*)
(*Measured in 4,0 m distance,
converted to 1,0 m)
94 dB / 118 dB (*) 92 dB / 112 dB (*)
Usable Range
150 Hz - 16 kHz (- 6 dB) 150 Hz - 16 kHz (- 6 dB) 150 Hz - 16 kHz (- 6 dB)
Coverage   horizontal / vertical i-version: 80° x 7°
j-version: 80° x 17°
i-version: 80° x 7°
j-version: 80° x 17°
c-version: 80° x 37°
80° x 37°
Splay Angle i-version: 0°
j-version: 10°
i-version: 0°
j-version: 10°
c-version: 30°
30°
Connectors 2 x Speakon NL4MP in/out
Coding: 1 +/- HiMid, 2 +/- loop thru,
(Phoenix on request)

Handles - - - - - - - - -
Rigging / Fittings 3 x M10 / 6 x M6 3 x M10 / 6 x M6 3 x M10 / 4 x M6
Coating and Finish Black Polyurea coating and
black textile cover,
other colours on request

Weight 9,0 kg 5,0 kg 3,0 kg
Size height x width x depth 132,0 x 11,0 x 12,0 cm 67,0 x 11,0 x 12,0 cm 35,0 x 11,0 x 12,0 cm
Order No. 00730   (L 16i)
00735
(L 16j)

00715  (L 8i)
00725
(L 8j)
00720
(L 8c)

00710





Accessories
x
Bag

for 2 x L 16 and accessories

Order No. 01231
x

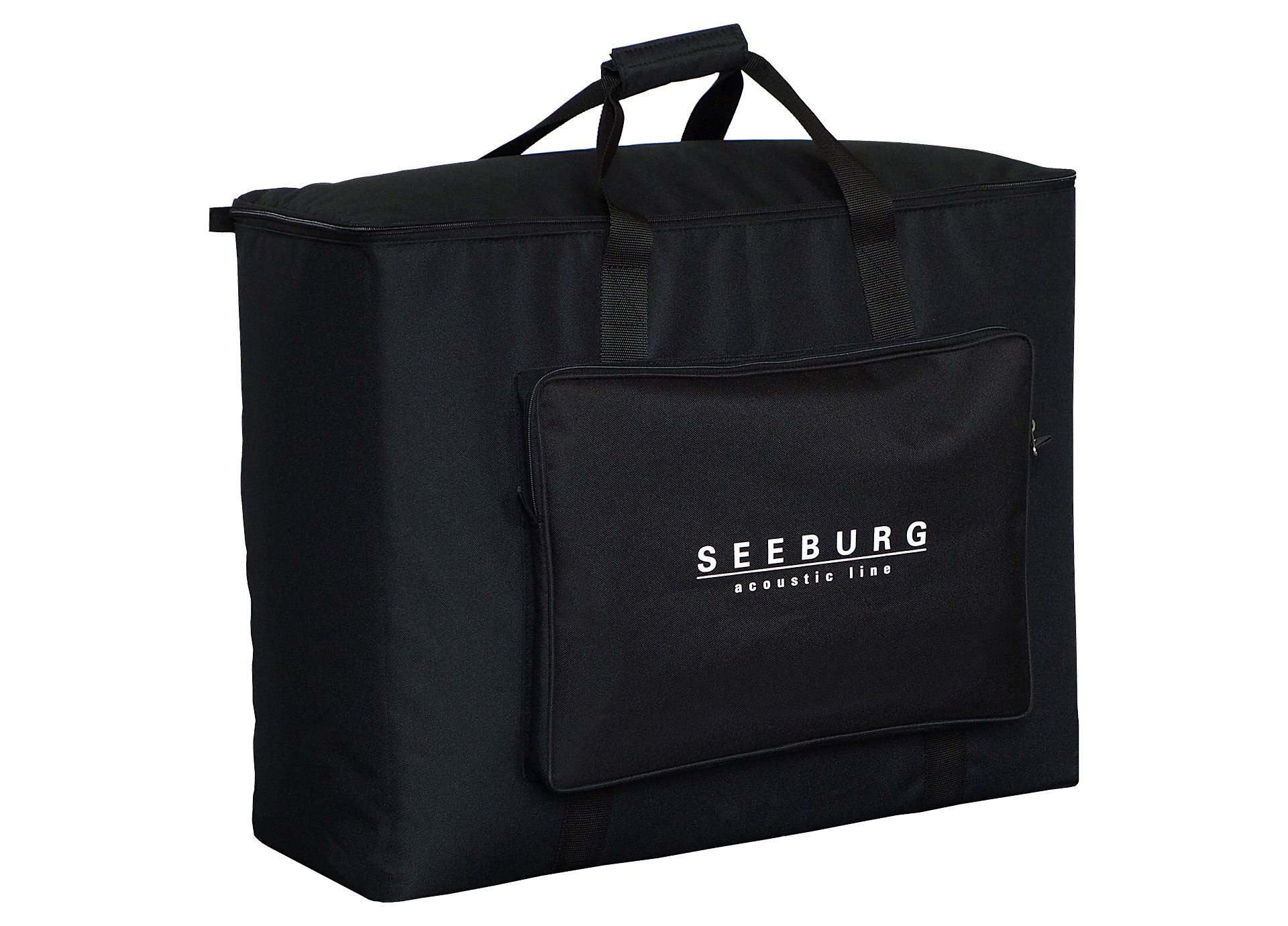

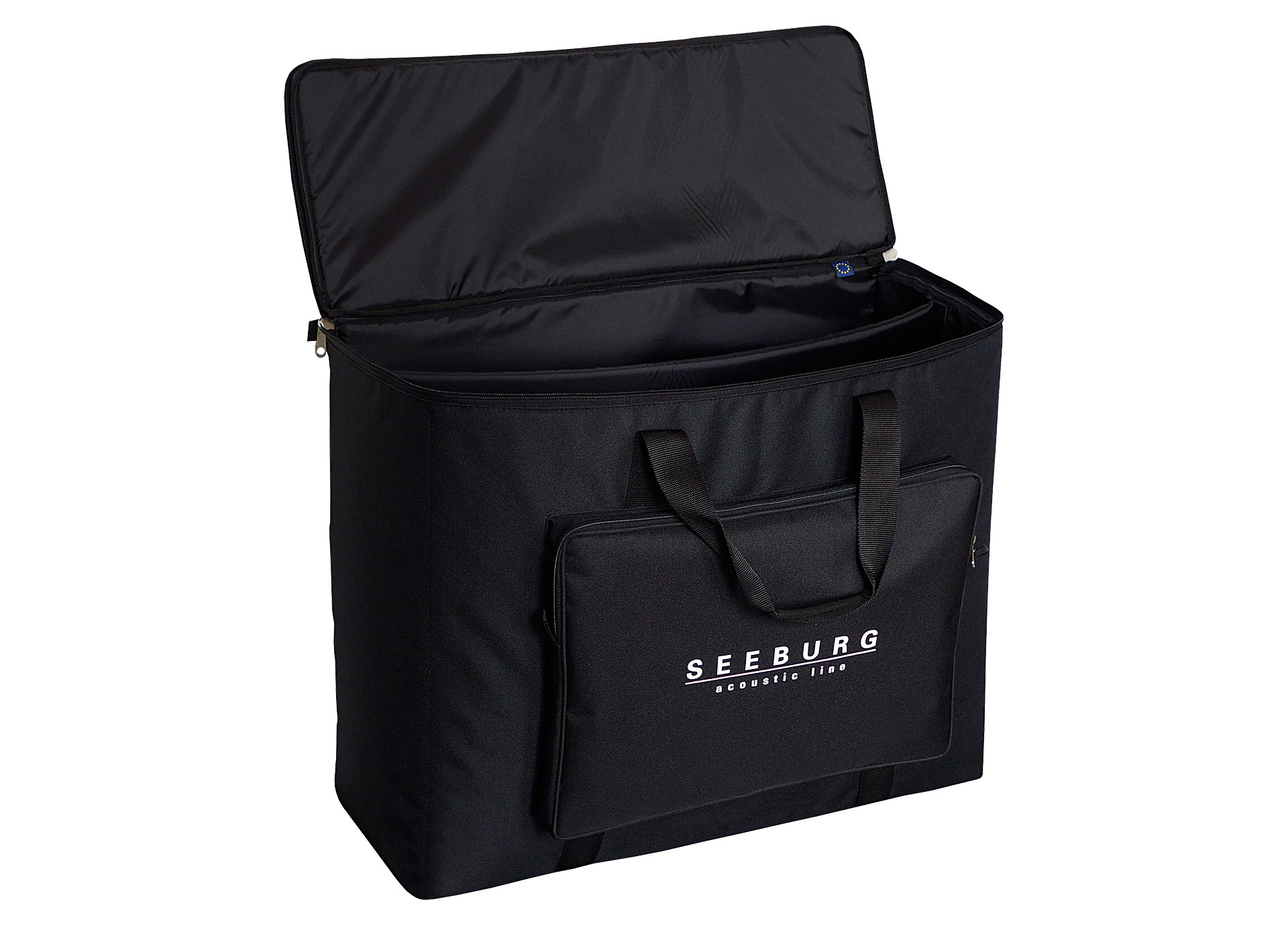

Universal Bag

Universal bag for
Small Base Plate and accessories,
with side pocket
51 cm x 62 cm x 23 cm
(height x width x depth)

Order No. 01227
x
Monopod for L-Serie

Size and Design like L 16j,
to be fixed with M20 on bottom
and M10 on top

Order No. 00750/L16j
x
Monopod for L-Serie

Size and Design like L 8i,
to be fixed with M20 on bottom
and M10 on top

Order No. 00750/L8i
x
Tool Set for Monopods

consisting of: wooden plate
with M20 and M10 screws,
matching keys, magnetic bits

Order No. 00750/tool
x
Angle Bracket

for L-Series, 90° angle,
depth: 75 mm / 90 mm / 110 mm


Order No. 08135/75/w  (RAL 9010)
Order No. 08135/75
Order No. 08135/90/w  (RAL 9010)
Order No. 08135/90
Order No. 08135/110/w  (RAL 9010)

Order No. 08135/110
x
Plate for depth compensation

for L-Series



Order No. 08149/depth/w (RAL 9010)

Order No. 08149/depth
x
Thread Bolt

M10 x 30 mm, incl. rubber washer

Order No. 08149/bolt
x
Tilt Adapter

0° - 5° - 10° - 15°

Order No. 08149/tilt/0°
Order No. 08149/tilt/5°
Order No. 08149/tilt/10°

Order No. 08149/tilt/15°
Flange

with ball and socket joint,
with additional locking screw,
M10 x 15,
max. load 15 kg

Order No. 08125
x
Knurled Head Nut

reduction screw for fastening
M10 pole mount adapter (08126)

Order No. 73755
Pole Mount Adapter

35 mm ø –> M10 x 16 mm,
M8 x 20 star knob screw

Order No. 08126/w (RAL 9010)

Order No. 08126
x
Pole Mount Adapter

35 mm ø –> M10 x 16 mm

Order No. 08126/II/w  (RAL 9010)

Order No. 08126/II
Pole Mount

for L-Series,
2 x fixing holes (d=73 mm),
adjustable

Order No. 08126/L-Series
Pole Mount

35 mm ø –> M10,
adjustable



Order No. 08126/adj/w (RAL 9010)

Order No. 08126/adj
x
Truss Clamp

incl. M10 Adapter,
max. load 15 kg

Order No. 01221
x
Steel Safety

4 mm x 600 mm,
max. load 10 kg (BGI 810-3),
quick connector undetachably

Order No. 01376/4
Wall Mount

2 x M6 fixing holes (d=73 mm),
1 x M10 fixing hole (center),
max. load 25 kg

Order No. 03034/w (RAL 9010)

Order No. 03034
x
Wall Mount

for L 8 / L 16 / A 2 / A 3
using fixing points d= 73 mm

Order No. 08132/w (RAL 9010)

Order No. 08132
Wall Mount

for permanent installation,
incl. tilt angle stop
M10, max. load 15 kg,



Order No. 08131/F/w (RAL 9010)

Order No. 08131/F
Wall Mount

ball and socket joint flange (08125)
+ 08125/plate

Order No. 08125/set
x
Base Plate Round

M20, ø 450 mm, height: 21 mm,
black zinc die-cast, felt strips on the bottom, weight: 6,7 kg

Order No. 01278/round
x
Base Plate Small

with M20 flange,
61,5 x 48,0 cm



Order No. 01278/w   (RAL 9010)

Order No. 01278
x
Speaker Pole

M20, adjustable

Order No. 03022
